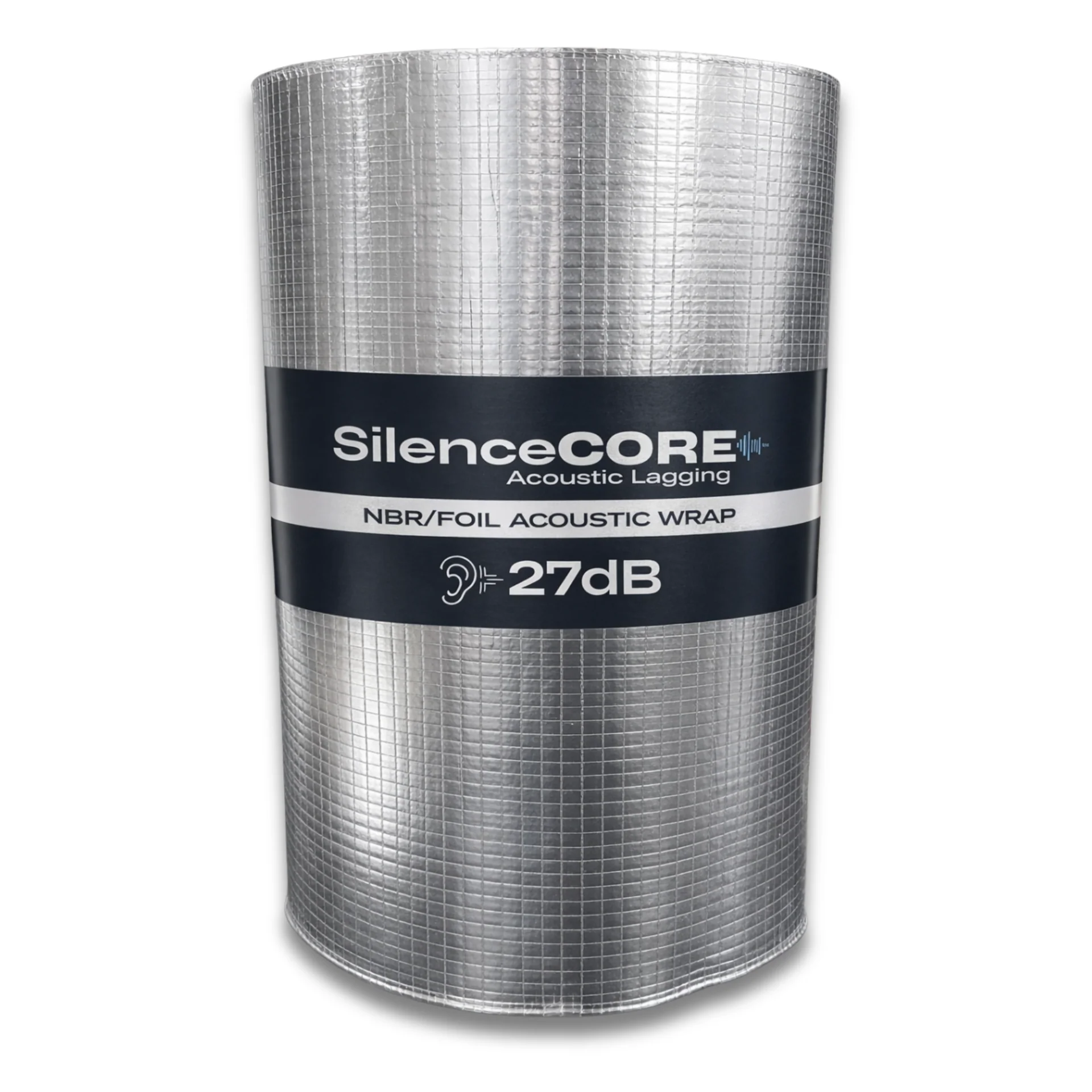

SilenceCORE Acoustic Lagging

High-performance acoustic insulation designed to reduce airborne noise radiating from pipes, ductwork and mechanical services.

The system combines a dense mineral-loaded acoustic barrier with a flexible NBR isolation layer and reinforced foil facing to deliver effective sound attenuation across a wide range of frequencies.

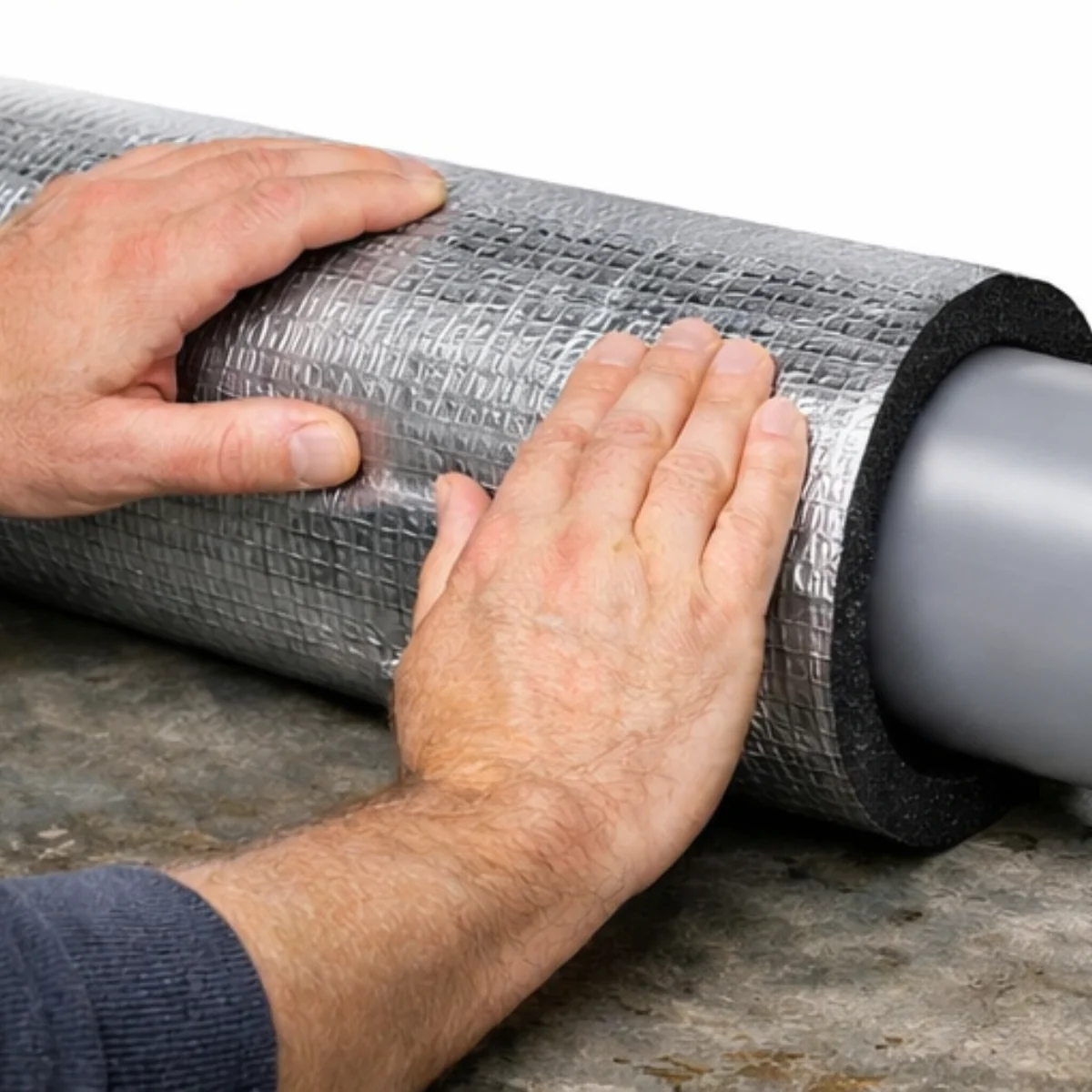

Manufactured using durable, flexible materials, the system is easy to install and can be wrapped directly around pipes and services on site. The foil outer facing provides additional durability and vapour resistance, making SilenceCORE suitable for demanding building service applications where reliable acoustic performance is required.

Key Benefits

• Reduces pipe and duct noise breakout
• Self-adhesive for rapid installation
• Flexible foil facing for durability
• Suitable for soil pipes, HVAC and plant services

Specification:

Roll Length:	4.5m
Roll Width:	0.5m
Area:	2.25m2
Thickness:	5mm
Weight:	6kg
Acoustic dB Reduction:	Tested to BS EN ISO 10140-2. Rw (C;Ctr) = 27 dB stand alone product. Ratings derived in accordance with BS EN ISO 717
Fire Rating	Fire performance tested in accordance with EN ISO 11925-2, with classification determined under EN 13501-1: Class D.
Application Temperature	-5°c - +40°c
Service Temperature Range	-40°c - +95°c
Similar Products	Bostik W110.

Building Regs & property development

dB Cem Panel Adhesive

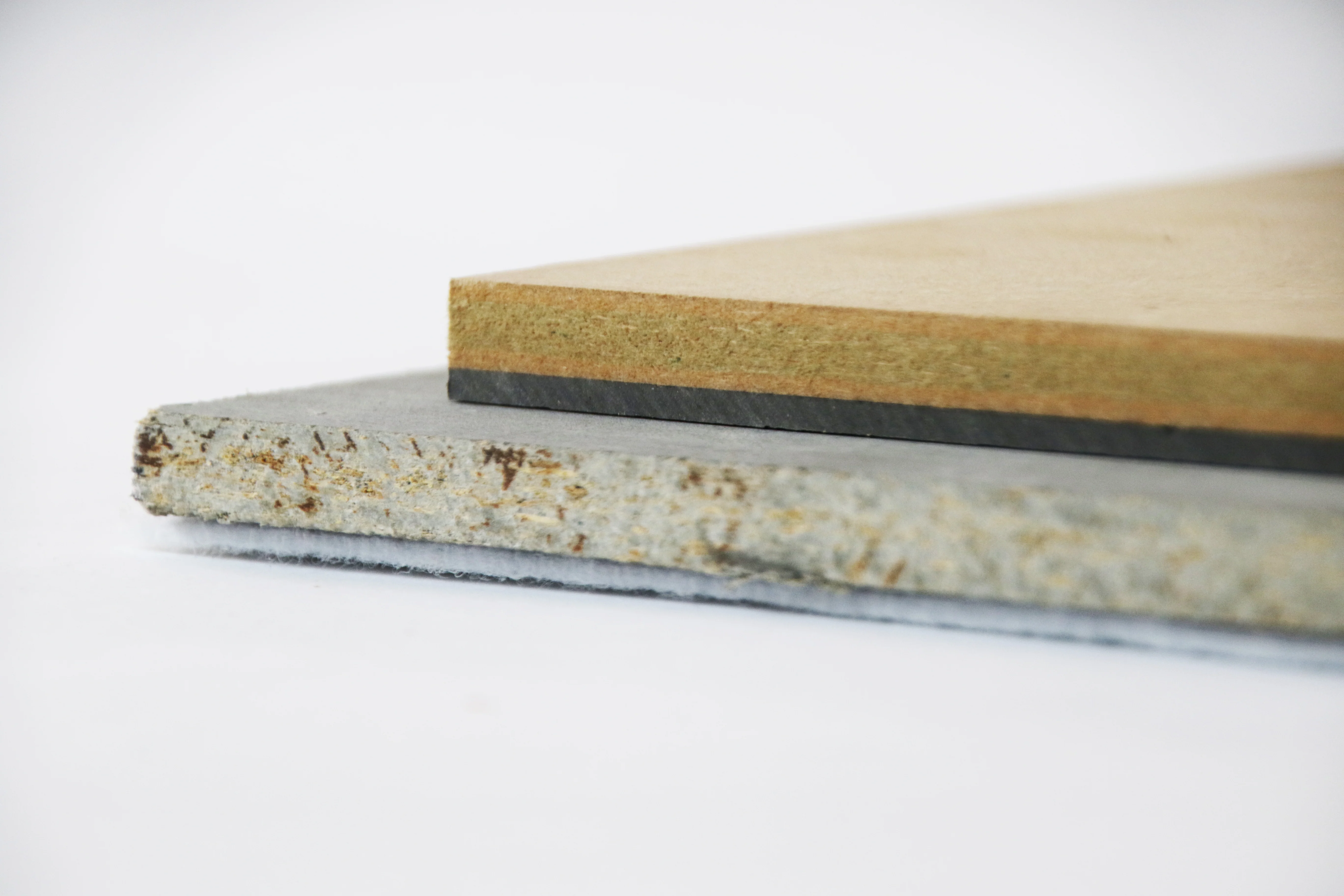

Maxideck Edging Strip 25mm
