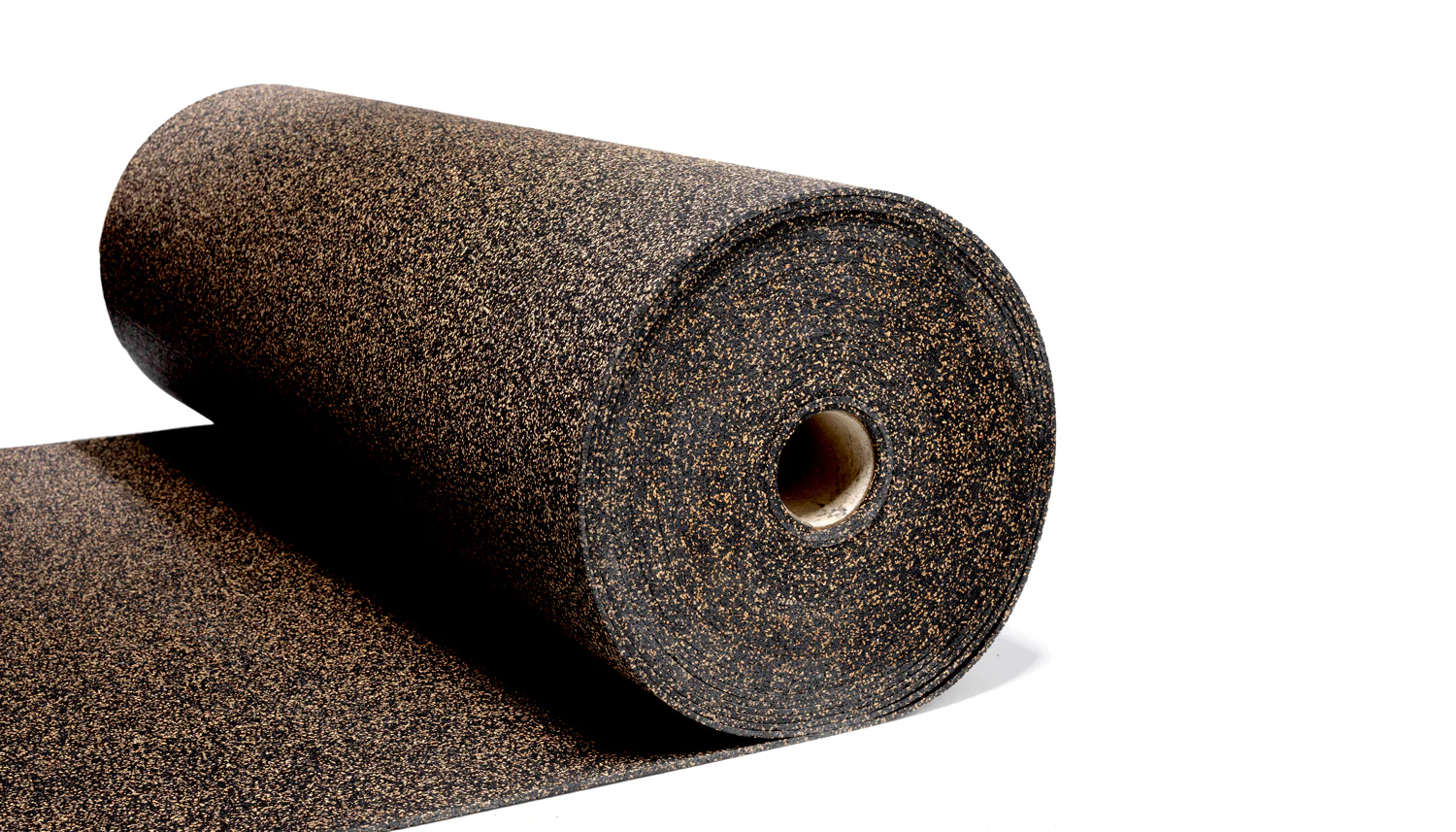

dB Matting 5mm
What is db matting 5mm?
dB Matting 5 is a shallow overlay treatment for improving impact sound transmission through a party floor. dB Matting 5 is generally installed over a concrete floor to isolate impact transmission from the structure.
dB Matting 5 is an ideal solution to upgrade impact performance through a high mass floor structure.
We have test data for dB Matting on most floor build-ups. Please contact us for this information.
Technical Data
| Characteristic | Value |
|---|---|
| Roll dimensions | 10 m² |
| Thickness | 5 mm |
| Length | 10 m |
| Width | 1 m |
| Density | 730 kg/m³ |
| Tog rating | 0.75 |
| Tensile strength | > 700 kPa |
| Compression | 17-20% |
| Recovery from compression | > 85% |
| Acoustic performance | 18 dB - 20 dB reduction dependant on floor finish |
Please consult the dB Matting datasheet for full installation & performance information.
Dimensions: 10000mm x 1000mm x 5mm (10m² per roll)
To be used with our VS90 Adhesive
